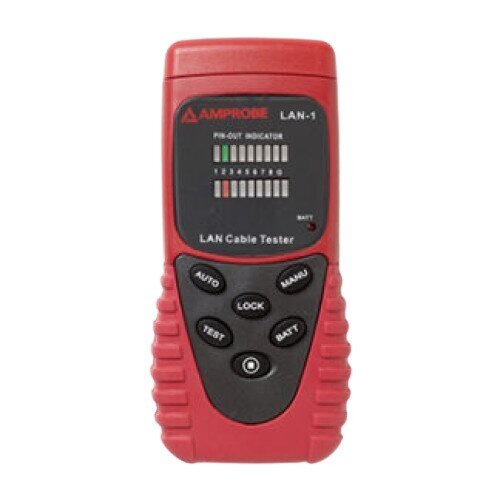

Amprobe LAN-1 LAN Cable Tester
Amprobe LAN-1 LAN Cable Tester Display Gallery Item 1

Amprobe LAN-1 LAN Cable Tester Price in Pakistan

By: Amprobe

Model: 3052401

Sku: YJSCXCDIMG

Be the first to review this product

Sign up for price alert

PKR 46,099

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Test pin configuration for: 10/100 base -T cable, 10 base-2 cable, RJ45 modular cables, AT T 258A cable, EIA/TIA 568A/568B cables, Token ring cable,
  • Verify the cable wiring for continuity, opens, shorts or incorrect wiring
  • Test installed cable on wall plate or the patch panels by using the remote termination module
  • Perform loopback test or remote test
  • Buzzer sound warning for error condition in cable
  • Two sets of LED lights for source and test indication
  • Maximum line length: > 300 meters
  • Connector types: RJ45, BNC
  • Cable types tested: 10/100 base-T; 10 base-2; RJ45; AT T 258A; EIA / TIA 568A/568B; Token Ring
  • Continuity maximum length: > 300 meters
  • Connector types: RJ45, BNC
  • Display: 18 LEDs: 9 red and 9 green, 9 LEDs on remote module
  • Battery: Standard 9-volt battery, NEDA 1604A, JIS 006P, IEC 6F22
  • Low battery indicator: The LED indicator will not turn on when BATT button is pushed
  • Operating environment: 0 to 40 °C (32 to 104 °F), 10 to 70% RH
Quantity:

The Amprobe LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations, and works with various data cables and connectors. This cable tester provides a quick go/no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.

In the Box

  • Amprobe LAN-1 LAN Cable Tester
  • Remote terminator
  • RJ45 To Female BNC Cable
  • RJ45 To male BNC Cable
  • RJ45 To RJ45 Cable
  • Female BNC To Female BNC Cable
  • Batteries (Installed)
