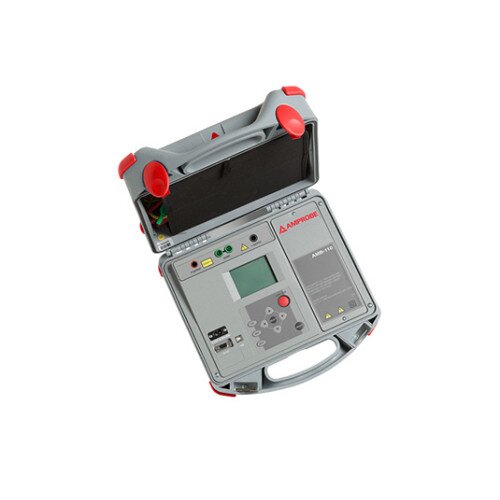

Amprobe AMB-110 Industrial High-Voltage Insulation Tester
Amprobe AMB-110 Industrial High-Voltage Insulation Tester Display Gallery Item 1
Amprobe AMB-110 Industrial High-Voltage Insulation Tester - 2 Display Gallery Item 2
Amprobe AMB-110 Industrial High-Voltage Insulation Tester - 3 Display Gallery Item 3

Amprobe AMB-110 Industrial High-Voltage Insulation Tester Price in Pakistan

By: Amprobe

Model: 3730335

Sku: 2JYSTDMXY0

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Test insulation of wires, cables, transformers, motors, surge arrestors and generators
  • Selectable testing voltages – one testing instrument for low and high voltage systems from 500 V to 10,000 V with 25 V increments
  • Insulation resistance measurement up to 10TΩ
  • R(t) graph – Real time resistance against time graph plotting facility to graphically illustrate the response of a material to an applied test voltage
  • User selectable Programmable Timer (1s to 99 min)
  • Automatic discharge of test object after completion of measurement
  • Capacitance Measurement
  • Diagnostic tools
  • Polarization index (PI)
  • Dielectric discharge (DD)
  • Dielectric Absorption Ratio (DAR) with automated resistance ranging (AR)
  • Step voltage test – Insulation resistance will be measured at five different, equality sequenced test voltages for in-depth insulation system diagnostic
  • Insulation resistance: 0 O → 999 kO, 1.00 O → 9.99 MO, 10.0 MO → 100.0 MO, 1.00 O- 9.99 GO
  • Test voltage and step voltage diaplay range: 0 V → 9999 V
  • Current display range: 0.00 nA → 9.99 nA, 10.0 nA → 99.9 nA, 100 nA → 999 nA, 1.00 µA → 9.99 µA, 10.0 µA → 99.9 µA, 100 µA → 999 µA, 1.00 mA → 5.50 mA
  • Dielectric absorption ratio (DAR): 0.01 → 100.0
  • Polarization index (PI): 0 → 100.0
  • Dielectric discharge test (DD): 0 → 100.0
  • Leakage current display range: 0 mA → 5.50 mA
  • External voltage measurement: 0 V → 600 V
  • Capacitance measurement: 0 nF → 99.9 nF, 100 nF → 999 nF, 1 µF → 50.0 µF
  • Memory size: 128 kB
Stock Request Notify When Available

Eliminate downtime, predict the lifetime of equipment and reduce safety hazards with the Amprobe AMB-110 Insulation Resistance Tester that tests voltage and step voltage to 10,000 V.

You can accurately test cables, transformers, motors, surge arrestors and generators in noisy environments such as high voltage switchyards. It also boasts built-in noise rejection filters and shielded test leads to provide high EMI immunity.

In the Box

  • Amprobe AMB-110 Industrial High-Voltage Insulation Tester
  • Test lead
  • Large jaw alligator clips
  • Batteries
  • Carrying case
  • Software
  • RS-232 cable
  • USB cable
