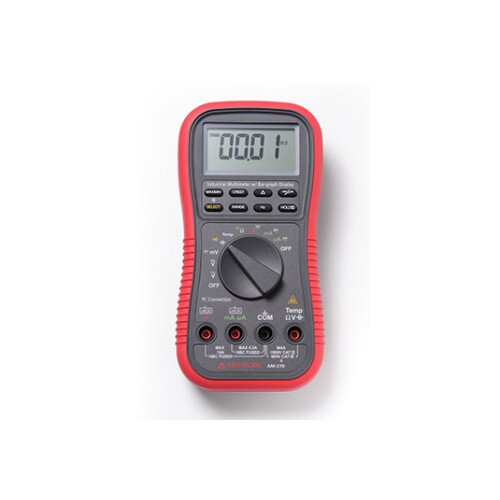

Amprobe AM-270 True-rms Industrial Multimeter with Temperature
Amprobe AM-270 True-rms Industrial Multimeter with Temperature Display Gallery Item 1

Grab Amprobe AM-270 True-rms Industrial Multimeter with Temperature

By: Amprobe

Model: AM-270

Sku: QXUHR351JZ

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 18 Features
  • True-rms
  • Measures AC/DC voltage up to 1000V, current, resistance, frequency, capacitance and temperature
  • Auto and manual ranging
  • Auto power off
  • Data hold
  • Backlight display
  • Large, easy to read LCD display
  • Audible continuity
  • Diode test
  • AC Voltage: 50.00 mV, 500.0 mV, 5.000 V, 50.00 V, 500.0 V, 1000 V
  • DC Voltage: 50.00 mV, 500.0 mV 5.000 V, 50.00 V, 500.0 V, 1000V
  • Resistance: 50.00 Ω, 500.0 Ω, 5.000 kΩ, 50.00 kΩ, 500.0 kΩ, 5.000 MΩ, 50.00 MΩ
  • AC/DC Current: 50.00 µA, 500.0 µA, 500.0 mA, 5000 mA, 5.000 A, 10.00 A
  • Frequency: 5Hz → 125 kHz for all setups except: 5Hz → 1kHz for 500V and 1000V ranges 5 Hz → 20 kHz for 50 V range
  • Capacitance: 50.00 nF, 500.0 nF 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF
  • Temperature: -58 °F → 1832 °F (-50 °C → 1000 °C)
  • Data recording: Records peak, max, min, max-min
  • Display: -4/5 digits 5000 counts LCD display
  • Update rate: Digital Data 5 per second nominal;52 Segments Bar-graph 60 per second nominal
  • Power supply: Single standard 9 V battery NEDA1604, JIS006P or IEC6F22
  • Special features: Data-Hold; Range-Hold; Backlighted Display; Optional PC-interface capabilities
  • Special features: 50ms Record MAX-MIN readings at fast 20/second measurement mode; 5ms Crest (Instantaneous Peak-Hold) MAX-MIN readings; Relative-Zero offset mode; Zoom 5x analog pointer at 60/s
  • Accessories: Test leads (pair); Battery (installed); User’s manual; banana plug K type thermocouple
  • Optional PC-interface capabilities: 50 ms Record MAX-MIN readings at fast 20/second measurement mode; 5ms Crest (Instantaneous Peak-Hold) MAX-MIN readings; Relative-Zero offset mode; Zoom 5x analog pointer at 60/s
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Amprobe’s AM-270 is a commercial, true-rms multimeter for electrical and HVAC applications and is dedicated to electrical and HVAC professionals. Safety rated to CAT IV 600 V and CAT III 1000 V for outdoor and indoor applications requiring direct connection to main panel of the building or measurement of the outdoor wiring connecting building the utility transformer. This true-rms multimeter measures complete range of electrical parameters including voltage, current, resistance and frequency. It also covers HVAC application with temperature, capacitance and micro amps functions. True-rms sensing for superior accuracy.

In the Box

  • Amprobe AM-270 True-rms Industrial Multimeter with Temperature
  • Test leads (pair)
  • Banana plug K-type thermocouple
  • 9 V battery (installed)
