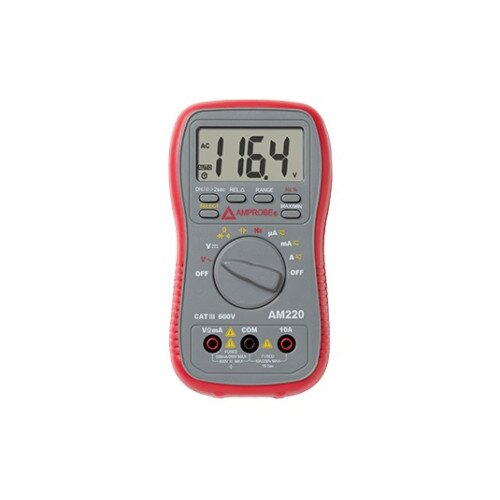

Amprobe AM-220 Compact Digital Multimeter Price in Pakistan

By: Amprobe

Model: AM-220

Sku: PCCGZJVZQ0

Availability: Out of stock New

Availability: Out of stock

  • Measure: AC/DC Voltage up to 600V, AC/DC current up to 10A, resistance, capacitance, frequency, duty cycle
  • AC/DC micro amps for sensors diagnosis
  • Large backlight LCD display
  • Diode test
  • Audible continuity test
  • Data hold
  • Max, min and Relative measurements
  • Auto and manual ranging
  • Auto power off (can be disabled)
  • Tilt stand
  • AC Voltage: 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage: 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Capacitance: 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
  • Frequency: 10.00 Hz, 100.0 Hz, 1000 Hz, 10.00 kHz, 100.0 kHz, 1000 kHz, 10 MHz
  • Continuity: •
  • Duty cycle: 0.1 % – 99.9 %
  • AC/DC Voltage: 400mV 4.000/40.00/400.0/600 V
  • AC/DC Current: 400/4000µA 40/400 mA 4/10 A
  • Resistance: 400.0 Ohms 4.000/40.00/400.0 kOhms 4.000MOhms/40.00 MOhms
  • Capacitance: 40.00/400.0 nF 4.000/40.00/400.0/4000µF
  • Frequency: 10.00/ 100.0/1000 Hz 10.00/100.0/1000 kHz 10M Hz
  • Duty cycle: 0.1%-99.9%
Stock Request Notify When Available

The Amprobe AM-220 is a well-built multimeter packed with a full set of features. Featuring a large LCD display with backlight, datahold, min/max and relative measurements.

In the Box

  • Amprobe AM-220 Compact Digital Multimeter
  • Test leads
  • Battery (installed)
