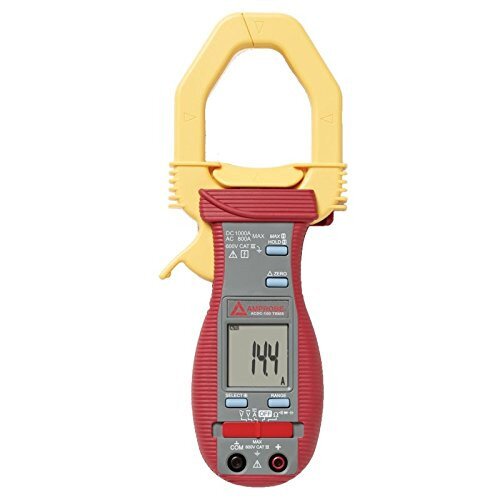

Amprobe ACDC-100 TRMS 1000 A AC/DC Clamp Meter
Amprobe ACDC-100 TRMS 1000 A AC/DC Clamp Meter Display Gallery Item 1
Amprobe ACDC-100 TRMS 1000 A AC/DC Clamp Meter - 2 Display Gallery Item 2

Amprobe ACDC-100 TRMS 1000 A AC/DC Clamp Meter Price in Pakistan

By: Amprobe

Model: 2740465

Sku: CU4B1G40RO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • True-rms
  • Measures AC current to 800A and DC current to 1000A, AC/DC voltage to 600V, plus capacitance, and resistance
  • Continuity beeper quickly identifies shorts and opens
  • Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
  • Data hold freezes the reading on the display for further analysis
  • Diode test quickly finds voltage drops
  • MAX capture function measures inrush current (30 mS response)
  • Combines user friendly features such as a large, easy to read backlit digital display, auto power-off to conserve battery life, and a “third hand” test probe holder
  • Rubber over-molded case absorbs shock and provides built-in probe storage
  • Accommodates conductors up to 2.0″ (50 mm) in diameter
  • CAT III 600 V rated
  • AC Current: 400.0 A, 800 A
  • DC Current: 400.0 A, 1000 A
  • Voltage AC/DC: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
  • Accommodates conductors: up to 2.0″ (50 mm) in diameter
  • True-rms: Yes
  • DC Current: 400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800 A
  • AC Current: 400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600 A, 40 to 100 Hz
  • AC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4 V to 400 V ranges , 50 to 500 Hz
  • DC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4 V to 400 V ranges
  • Resistance: 400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges
  • Capacitance: 500.0 nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)
Stock Request Notify When Available

The ACDC-100 TRMS 1000 A digital clamp meter offers superior accuracy, quality and reliability with all the basic measurement capabilities technicians need in an AC/DC current clamp meter. Use it to measure AC current to 800 A, DC current to 1000 A, and AC/DC voltage from 400.0 mV to 600 V.

Its large jaws accommodate conductors up to 2″ (50 mm) in diameter and its enhanced ergonomic design make it a great choice for a clamp with professional digital multimeter capabilities.

In the Box

  • Amprobe ACDC-100 TRMS 1000 A AC/DC Clamp Meter
  • Deluxe Carrying Case
  • Test Leads
  • Batteries (Installed)
