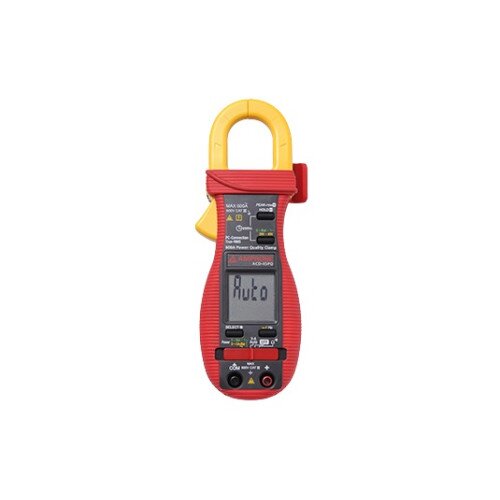

Amprobe ACD-45PQ 600A Power Quality Clamp with True-rms
Amprobe ACD-45PQ 600A Power Quality Clamp with True-rms Display Gallery Item 1

Amprobe ACD-45PQ 600A Power Quality Clamp with True-rms Price in Pakistan

By: Amprobe

Model: ACD-45PQ

Sku: 301LBCFKWC

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • True-rms sensing
  • Ultra slim jaws accommodate conductors up to 1.02 (26mm) in diameter
  • Measurements: AC/DC Vvoltage up to 600V, AC current up to 600A, resistance, frequency power: active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout, KWh recording
  • AutoVA – auto selection of AC volts, DC volts or AC amps
  • 3 phase unbalanced load measurement – calculation of the discrete single phase measurements
  • Optional PC interface capability (RS-232 KIT2)
  • Audible continuity
  • Large, easy to read LCD display with backlight
  • Auto power off
  • Low battery indication
  • Peak hold
  • Data hold
  • Voltage overload protection for all functions up to 600 V AC/DC
  • AC Current: 40.00 A, 400.0 A, 600 A
  • AC/DC Voltage: 600.0 V
  • Resistance: 999.9
  • Frequency: 5.00 Hz → 500.0 Hz
  • Active power: 0 kW → 360.0 kW
  • Reactive power (VAR): 0 kVAR → 360.0 kVAR
  • Apparent power (VA): 0 kVA → 360.0 kVA
  • Power factor: 0.10 → 0.99
  • Accommodates conductors: up to 1.02″ (26 mm) in diameter
  • Display: Voltage functions: 6000 counts LCD display Power Ohm Hz functions: 9999 counts LCD display AC A clamp-on function: 4000 counts LCD display
  • Update rate: Power function: 2 per second nominal Voltage, AC A clamp-on Ohm functions: 2 per second nominal Hz function: 1 per second nominal
  • Polarity: Automatic
  • Sensing: True-rms sensing
  • Safety: Meets IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAN/CSA C22.2 No.61010.1-0.92, IEC61010-2-032, EN61010-2-032 UL61010B-2-032,
Stock Request Notify When Available

The Amprobe ACD-45PQ is a compact digital clamp meter capable of measuring power, energy and power factor on a single and three-phase systems (balanced and unbalanced). Ultra-slim jaw design allows the user to clamp around conductors in confined and difficult to reach places. This digital clamp meter is also true-rms sensing takes reliable AC/DC voltages measurements up to 600 V.

In the Box

  • Amprobe ACD-45PQ 600A Power Quality Clamp with True-rms
  • Test leads
  • Batteries (installed)
  • Type-K thermocouple
  • Carrying case
