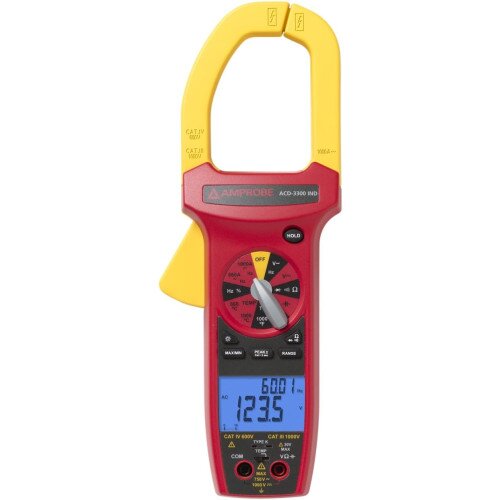

Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature
Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature Display Gallery Item 1
Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature - 2 Display Gallery Item 2
Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature - 3 Display Gallery Item 3

Grab Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature

By: Amprobe

Model: 3434877

Sku: 50OD9YEAHR

Be the first to review this product

Sign up for price alert

PKR 105,199

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • True-rms
  • Measures AC current up to 1000 AC A, voltage up to 750 V AC / 1000 V DC, frequency, resistance and capacitance and duty cycle
  • Temperature to 1832 °F (1000 ℃)
  • Peak hold
  • Audible continuity
  • Auto and manual ranging
  • Auto power off
  • Data hold
  • Backlight
  • Diode test
  • Duty cycle
  • Bar-graph
  • Accommodates conductors up to 2″ (51 mm) in diameter
  • Safety CAT IV 600 V, CAT III 1000 V
  • DC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
  • AC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
  • AC Current: 66.00 A, 660.0 A, 1000 A
  • Resistance: 660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
  • Capacitance: 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF
  • Frequency: 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
  • Temperature: -30 °F → 1832 °F (-35 °C → 1000 °C)
  • Accommodates conductors: up to 2.0″ (51 mm) in diameter
  • DC Volts range: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
  • Accuracy: +/- (0.5% rdg + 2 dgts)
  • Input impedance: 660 mV: >100 MO; 6.6 V:10 MO; 66 V to 1000 V: 9.1 MO
  • Overload protection: 1000 V DC or 750 V AC rms
  • AC Volts True-rms range : 660.0 mV Frequency 50 to 100 Hz, +/- (1.5% rdg + 8 dgts), 6.600 V, 66.00 V Frequency 50 to 500 Hz, +/- (1.5% rdg + 8 dgts), 660.0 V, 750 V Frequency 50 to 500 Hz, +/- (1.5% rdg + 8 dgts)
  • Frequency* (*10% to 100% of voltage range): 50 to 1 kHz, +/- (0.1% rdg + 5 dgts)
  • Auto power off: Approx. 30 minutes
  • Display: 3″ digit liquid crystal display (LCD) (6600 count) with a 66-segment analog bar-graph
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Quantity:
  • Add to Wishlist
  • Add to Compare

This CAT IV rated ACD-3300 IND Clamp On Tester is ideal for industrial applications and utilities that require an extra level of safety. Including True-rms sensing for accuracy, this clamp on meter’s extra large jaws can clamp on to those wide diameter wires making taking measurements in industrial environments simple.

In the Box

  • Amprobe ACD-3300 IND CAT IV TRMS Clamp Meter with Temperature
  • Test Leads
  • Type-K Thermocouple
  • Battery (Installed)
  • Carrying Case
