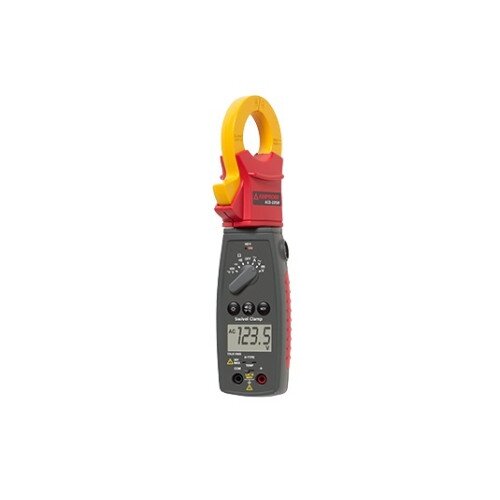

Amprobe ACD-23SW True-rms Swivel Clamp Meter with Temperature and VolTect
Amprobe ACD-23SW True-rms Swivel Clamp Meter with Temperature and VolTect Display Gallery Item 1

Amprobe ACD-23SW True-rms Swivel Clamp Meter with Temperature and VolTect Price in Pakistan

By: Amprobe

Model: 3804941

Sku: A1X5XX83AA

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • TRMS Measurement
  • 180 degree rotating head for the perfect display viewing
  • Advanced VoltTect non-contact voltage detection
  • Slim jaw design with one hand operation
  • Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600 V, Resistance and Capacitance
  • Temperature measurement
  • Audible continuity
  • Auto and manual ranging respectively for quick checks and precise measurements
  • Auto power off
  • Data hold
  • Accommodates conductors up to 1.18” (30 mm) in diameter
  • AC Current: 40.00 A , 400.0 A, +/- (2.0 % rdg + 10 dgts) 50 Hz → 60 Hz
  • AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600.0 V, +/- (1.2% rdg + 8 dgts) → 400 V Hz
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600.0 V, +/- (0.5% rdg + 2 dgts)
  • Resistance: 400.0 ?, 4.000 k?, 40.00 k?, 400.0 k?, 4.000 M?, 40.00 M?, +/- (1.0% rdg + 4 dgts) at 400 ? → 400 k? ranges
  • Capacitance: 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF, +/- (3.0 % rdg + 15 dgts) on 40 µF → 400 µF ranges
  • Temperature: -30 °F →400 °F, (-35 °C → 400 °C), +/- (1 % + 2 °F) -4 °F → 400 °F +/- (1 % + 1 °C) 0 °C → 200 °C
  • VolTect non-contact voltage detection: 70 V → 600 VAC (50 Hz → 60 Hz)
  • Accommodates conductors: Up to 1.18″ (30 mm) in diameter
  • Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999
  • Polarity: Automatic, positive implied, negative polarity indication
  • Power: 1.5 volt battery x2, R03/SIZE AAA
Stock Request Notify When Available

Amprobe’s ACD-23SW Swivel Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.

Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600 V safety ratings make this clamp on meter something you should swivel to see.

In the Box

  • Amprobe ACD-23SW True-rms Swivel Clamp Meter with Temperature and VolTect
  • Test Leads
  • Battery (Installed)
  • Carrying Case
  • Type-K Thermocouple
