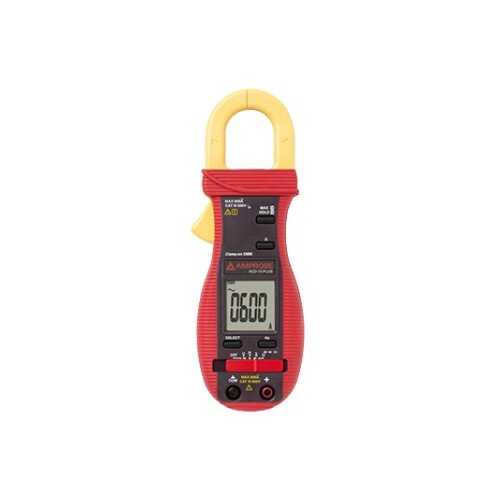

Amprobe ACD-10 PLUS 600A Clamp Multimeter
Amprobe ACD-10 PLUS 600A Clamp Multimeter Display Gallery Item 1
Amprobe ACD-10 PLUS 600A Clamp Multimeter - 2 Display Gallery Item 2
Amprobe ACD-10 PLUS 600A Clamp Multimeter - 3 Display Gallery Item 3

Amprobe ACD-10 PLUS 600A Clamp Multimeter Price in Pakistan

By: Amprobe

Model: 3037808

Sku: ILEO3Z4UUT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
  • Thin jaws, only 10mm (0.4″) thick make it easier to maneuver between tightly packed conductors
  • Measures frequency, resistance, and capacitance
  • Features continuity beeper to quickly find opens and shorts
  • Accommodates conductors up to 1.0″ (25mm) in diameter
  • Auto ranging saves time by instantly selecting correct range
  • Auto power off to conserve battery life
  • Rubber over-molded case absorbs shock
  • AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • AC Current: 40.00 A, 400.0 A, 600 A
  • Resistance: 400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ
  • Capacitance: 500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF
  • Frequency: 40 Hz - 400 Hz with Jaw, 10 Hz - 100 kHz with test leads
  • Accommodates conductors: up to 1.0″ (25 mm) in diameter
  • Display: 3-3/4 digits 4000 counts LCD display
  • Update rate: 3 per second nominal
  • Polarity: Automatic
  • Operating temperature: °C to 40 °C; ( 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C
  • Altitude: Operating below 2000m; Indoor use
  • Storage temperature: -20 °C to 60 °C, ( 80% RH (with battery removed)
  • Temperature coefficient: nominal 0.15 x (specified accuracy)/°C @(0 °C ~ 18 °C or 28 °C ~ 40 °C)
  • Low battery: Below approx. 2.4V
  • Power supply: 3V coin battery IEC-CR2032
  • Power consumption: 2.8 mA typical except that 3.3 mA typical for ACA function
  • APO timing: Idle for 30 minutes
  • APO consumption:
  • Jaw opening conductor diameter: max 26 mm
  • Special features: 30ms Max Hold; Data Hold; Relative Zero mode
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe ACD-10 PLUS clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4″/10mm thick) allowing access to tight measurement areas and still handles conductors up to 1.0 (25mm).

It combines the convenience and flexibility of an AC/DC current clamp meter with the most frequently used digital multimeter functions, including ac/dc current and voltage, capacitance, and frequency.

In the Box

  • Amprobe ACD-10 PLUS 600A Clamp Multimeter
  • Test Leads
  • Battery (Installed)
  • Soft Carrying Pouch
  • Users Manual
