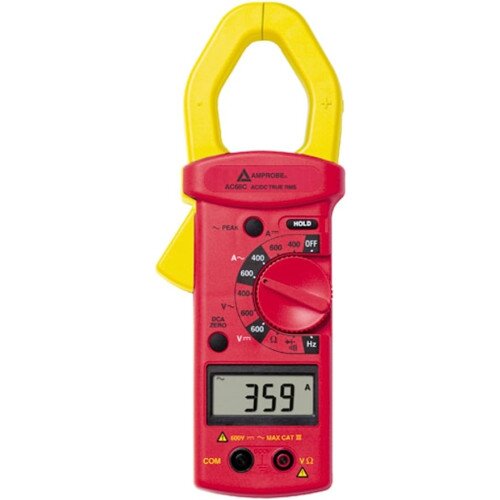

Amprobe AC68C TRMS 600 A Clamp Meter
Amprobe AC68C TRMS 600 A Clamp Meter Display Gallery Item 1

Amprobe AC68C TRMS 600 A Clamp Meter Price in Pakistan

By: Amprobe

Model: 2727919

Sku: AF4G56RGF3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 8 functions/11 ranges
  • Data and AC peak hold
  • DC auto zero
  • 33⁄4 digit, LCD, max reading of 3999
  • Maximum jaw opening 1.57˝ (40 mm)
  • Autoranging for frequency measurement
  • Low battery indication
  • Auto-power off after 30 minutes
  • Manual function and range selection with rotary selector
  • AC Voltage: 600 V
  • DC Voltage: 400.00 V, 600 V
  • AC Current: 400.00 A, 600 A
  • DC Current: 400.00 A, 600 A
  • Resistance: 4.000 kO
  • Frequency: 4 kHz, 20 kHz
  • Accommodates conductors: up to 1.3″ (35 mm) in diameter
  • DC Voltage ranges: Range: 600 V, Accuracy: ± (0.75 % rdg + 2 dgts), Resolution: 1 V in 600 V range, Input impedance: 10 MO
  • AC Voltage (40-450 Hz) range: Range: 400 V, 600 V, Accuracy: ± (1.2 % rdg + 5 dgts), Resolution: 0.1 V in 400 V range, Input impedance: 10 MO
  • DC Current: Range: 400 A, 600 A, Accuracy: ± (2 % rdg + 5 dgts), Resolution: 0.1 A in 400 A range
  • AC Current (40-450 Hz): Range: 400 A, 600 A, Accuracy: ± (2 % rdg + 5 dgts), Resolution: 0.1 A in 400 A range
  • Frequency (Hz), current and voltage: Range: 4 kHz, 20 kHz, Accuracy: ± (0.5 % rdg + 5 dgts), Resolution: 1 Hz in 4 kHz range, Sensitivity: 5 A/1 V in 4 kHz range, 5 A/5 V in 20 kHz range
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Amprobe AC68C TRMS 600 A Clamp Meter measures non-linear load current with true-rms readings. This top-of-the-line professional clamp DMM is CAT II 600 V, CAT III 300 V rated.

In the Box

  • Amprobe AC68C TRMS 600 A Clamp Meter
  • Test Leads
  • Battery
  • Carrying Case
