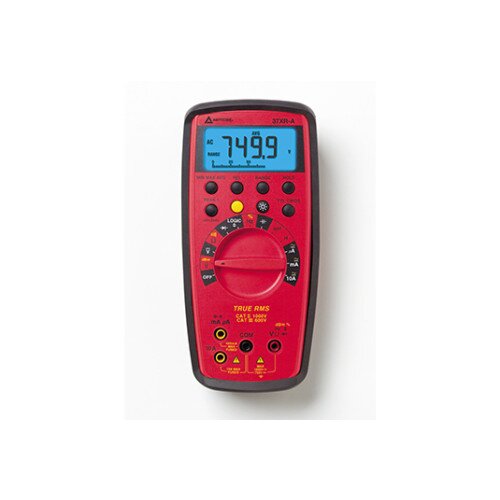

Amprobe 37XR-A TRMS Digital Multimeter
Amprobe 37XR-A TRMS Digital Multimeter Display Gallery Item 1

Amprobe 37XR-A TRMS Digital Multimeter Price in Pakistan

By: Amprobe

Model: 2727808

Sku: IE9KTJH4ET

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Backlight, True-rms with component and logic test
  • Inductance to 40 H, frequency to 40 MHz, capacitance to 400 μF, logic to 20 MHz
  • Input warning tone when test leads are in wrong jack
  • 10 Amps AC/DC, fully safety fused
  • Continuity beeper
  • Min/max, average, relative, peak, and data hold
  • Auto power off to save battery life
  • Separate door for easy battery and fuse access
  • Magne-Grip™ Holster with magnetic hanging strap
  • Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
  • Display Update Rate: 2/sec, nominal
  • Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
  • Operating temperature: 0 °C to 45 °C at < 70 % R.H
  • DC Voltage: 1.000 mV, 10.00 V, 100.0 V, 1000 V
  • AC Voltage: 1.000 mV, 10.00 V, 100.0 V, 1000 V
  • DC Current: 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
  • AC Current: 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
  • Resistance: 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
  • Capacitance: 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
  • Frequency: 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
  • Duty cycle: 0.00 % → 90.0 %
  • Inductance: 40 H
  • dBm: -13 dBm → + 50 dBm
  • DC Voltage ranges: 1000 mV, 10 V, 100 V, 1000 V
  • DC Voltage accuracy: All ranges ± (0.1 % rdg + 5 dgt)
  • DC Voltage resolution:
  • AC Voltage (45 Hz to 2 kHz) True-rms ranges: 1000 mV, 10 V, 100 V, 750 V
  • AC Voltage (45 Hz to 2 kHz) True-rms accuracy: 750 V range: 45 to 1 kHz: ± (2.0 % rdg + 10 dgts), All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 10 dgts), All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 10 dgts)
  • AC Voltage (45 Hz to 2 kHz) True-rms resolution: 100 µV
  • AC coupled: True RMS specified from 5 % to 100 % of range
  • DC Current ranges: 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
  • DC Current accuracy: 100 µA range: ± (0.5 % rdg + 10 dgt), 1000 uA to 400 mA ranges: ± (0.5 % rdg + 5 dgts), 10 A range: ± (1.5 % rdg + 10 dgt)
  • DC Current resolution: 0.01 µA
  • AC Current (45 Hz to 1 kHz) True-rms ranges: 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
  • AC Current (45 Hz to 1 kHz) True-rms accuracy: 100 µA to 100 mA ranges: ± (1.5 % rdg + 10 dgts), 400 mA range: ± (2.0 % rdg + 10 dgts), 10 A range: ± (2.5 % rdg + 10 dgts)
  • AC Current (45 Hz to 1 kHz) True-rms resolution: 0.01 µA
  • Resistance ranges: 1000 O 10 kO 100 kO 1000 kO 10 MO 40 MO
  • Resistance accuracy: 1000 O to 1000 kO ranges: ± (0.5 % rdg + 8 dgts), 10 MO range: ± (1.0 % rdg + 10 dgts), 40 MO range: ± (2.0 % rdg + 10 dgts)
  • Logic test, logic type: TTL, CMOS
Stock Request Notify When Available

The Amprobe 37XR-A Digital Multimeter offers True-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site.

In the Box

  • Amprobe 37XR-A TRMS Digital Multimeter
  • Test Leads With Threaded Alligator Clips
  • 9 V Battery (Installed)
  • Magne-Grip™ Holster With Magnetic Hanging Strap
  • Spare Fuse
