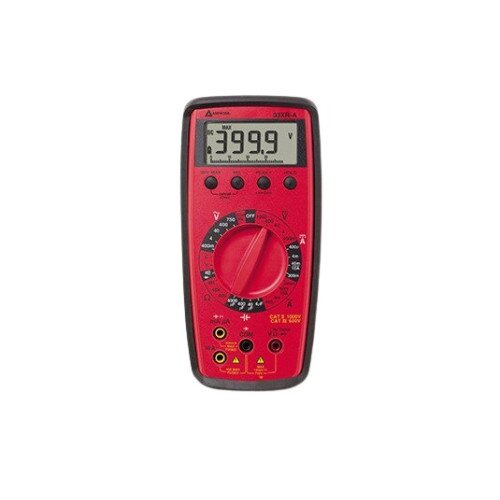

Amprobe 33XR-A Digital Multimeter With Temperature
Amprobe 33XR-A Digital Multimeter With Temperature Display Gallery Item 1

Amprobe 33XR-A Digital Multimeter With Temperature Price in Pakistan

By: Amprobe

Model: 2727788

Sku: HHAM29IYA2

Be the first to review this product

Sign up for price alert

PKR 58,199

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Min/max, relative, peak and data hold
  • Auto power off to save battery life
  • Separate door for easy battery and fuse access
  • Magne-Grip Holster with magnetic hanging strap
  • Display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
  • Display update rate: 2/sec, nominal
  • Analog bar graph
  • Overrange indication
  • Operating temperature: 0 °C to 45 °C at < 70 % R.H.
  • Storage temperature: -20 °C to 60 °C,
  • Input warning tone when test leads are in wrong jack
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • AC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • DC Current: 400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
  • AC Current: 400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
  • Resistance: 400.0 O, 40.00 kO, 4.000 MO
  • Capacitance: 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
  • Frequency: 4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
  • Temperature: 1832 °F (1000 °C)
  • DC Voltage ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
  • DC Voltage accuracy: All ranges: ± (0.7 % rdg + 1 dgt)
  • DC Voltage resolution: 100 µV
  • DC Voltage input impedance: 10 MO
  • AC Voltage (45 Hz to 500 Hz) ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
  • AC Voltage (45 Hz to 500 Hz) accuracy: 4 V Range, 200 Hz to 500 Hz: ± (2.0 % rdg + 4 dgts), All other ranges: ± (1.5 % rdg + 4 dgts)
  • AC Voltage (45 Hz to 500 Hz) resolution: 100 µV
  • AC Voltage (45 Hz to 500 Hz) input impedance: 10 MO
  • DC Current ranges: 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  • DC Current accuracy: 400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt), 10 A range: ± (2.0 % rdg + 3 dgts)
  • DC Current resolution: 0.1 µA
  • DC Current voltage burden: 400 µA range: 1 mV/µA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA, 300 mA range: 4 mV/1 mA, 10 A range: 100 mV/1 A
  • AC Current (45 Hz to 500 Hz) ranges: 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  • AC Current (45 Hz to 500 Hz) accuracy: 400 µA to 300 mA ranges: ± (1.5 % rdg + 4 dgts), 10 A range: ± (2.5 % rdg + 4 dgts)
  • AC Current resolution: 0.1 µA
  • AC Current voltage burden: See DC Current
  • Resistance ranges: 400 O 40 kO 4 MO
  • Resistance accuracy: 400 Oand 40 kO ranges: ± (1.0 % rdg + 4 dgts), 4 MO range: ± (1.2 % rdg + 4 dgts)
  • Resistance resolution: 100 mO
Quantity:
  • Add to Wishlist
  • Add to Compare

The Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance for field service technicians.

In the Box

  • Amprobe 33XR-A Digital Multimeter With Temperature
  • Test Leads With Threaded Alligator Clips
  • 9 V battery (Installed)
  • Magne-Grip Holster With Magnetic Hanging Strap
  • Temperature Adapter
  • Type K Thermocouple Probe
  • Spare Fuse
