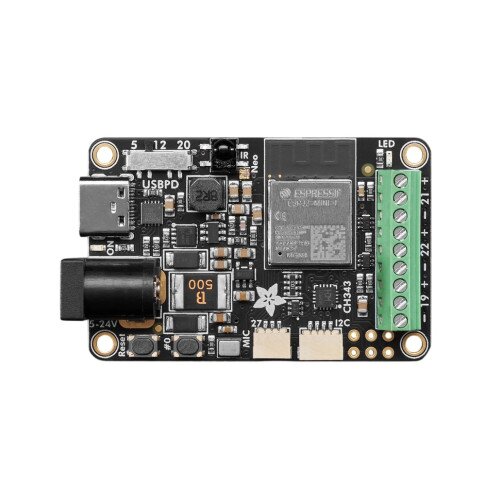

Adafruit Sparkle Motion - All-In-One WLED and xLights Board
Adafruit Sparkle Motion - All-In-One WLED and xLights Board Display Gallery Item 1
Adafruit Sparkle Motion - All-In-One WLED and xLights Board - 2 Display Gallery Item 2
Adafruit Sparkle Motion - All-In-One WLED and xLights Board - 3 Display Gallery Item 3
Adafruit Sparkle Motion - All-In-One WLED and xLights Board - 4 Display Gallery Item 4
Adafruit Sparkle Motion - All-In-One WLED and xLights Board - 5 Display Gallery Item 5

Grab Adafruit Sparkle Motion - All-In-One WLED and xLights Board

By: Adafruit

Model: 6100

Sku: DWKBPPXSR9

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Power via USB Type C PD with a slide switch that selects between 5, 12 and 20V (24V pixels can usually run fine at 20V) OR via 2.1mm DC jack
  • Low forward-voltage diodes so its good for up to 5A from either
  • 5 Amp fuse to protect from over-current drive
  • ESP32 mini module with built in or optionally wFL antenna port (the classic '32 has broad support even if we'd prefer the 'S2 or 'S3)
  • Three output signal terminal block sets with power and ground for each - they'll be level shifted to 5V.
  • 6 GPIO breakout pads with a fourth level-shifted ouput, and 3 more GPIO plus power and ground.
  • Built-in I2S microphone
  • Built-in IR receiver
  • Stemma QT I2C port to connect external sensors/OLED/etc
  • Separate analog/digital input JST port for analog input, potentiometer, microphone or external IR receiver
  • Compact enough you can use it for wearable projects - 1.3"x1.75" / 33mm x 45mm size with mounting holes

In the Box

  • Adafruit Sparkle Motion - All-In-One WLED and xLights Board
